Our hybrid access range, whist travelling at a lower speed, offers much of the functionality of a conventional passenger lift. With a fully enclosed cabin and automatic ‘one touch’ controls. The IL2 is designed to fit in only a 150mm pit and 2750mm headroom. In keeping with BS EN 81-41 the IL2 has a drive system designed for low use.
To comply with vertical lifting platform standards BS EN 81-41 a maximum speed of 0.15m/s is permitted. To place this into perspective please see illustration below:
| Floors Served | Typical floor to floor travel (mm) | Approximate journey time (seconds) |
| Ground to first | 2800 | 19 |
| Ground to second | 5600 | 38 |
| Ground to third* | 8400 | 57 |
*On the basis that the lift is already at the 3rd floor when it is called from ground, this would equate to a total journey time of nearly 2 minutes if travelling back up to the 3rd floor.

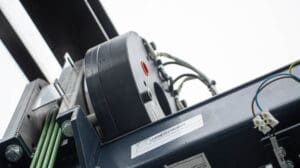

Traction lifts feature a control drive which is integrated into the lift shaft, and don’t need separate (non fire-rated) control cabinets like a hydraulic lift. Traction drive lifts provide a more environmentally friendly, energy efficient solution when compared with hydraulic lifts.
| Ideal Lifts IL2 Traction | Typical Hydraulic Lift | |
| Non-fire-rated control cabinet | N/A | Issue |
| Environmental effects of using hydraulic oil | N/A | Issue |
| Possible odour from hydraulic pump unit in MRC | N/A | Issue |
| Possible hydraulic oil leakage/spillage | N/A | Issue |
| Re-levelling during idle time | N/A | Issue |
| Levelling accuracy of car with landing floor | 3mm | 5-15mm |
| Energy consumption based on same usage | 25% | 100% |

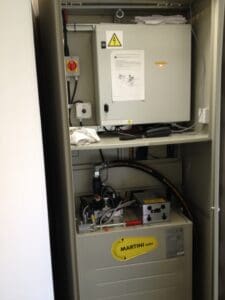

| Separate control cabinet 962mm(w) x 511mm(d) x 2162mm(h) | N/A –
Within Lift Shaft
 |
Issue
 |
Yes, please visit Breeam Compliance for further information.
Yes, please visit our Accessibility Guide.
Yes, please visit Evacuation Control Lifts.
Yes, please visit Firefighting Lifts.
Yes, please visit Vandal Resistant Lifts.
We mostly provide 8-Person and 13-Person lifts but can accommodate from 4-P to 33-P, see more information about our lift shaft size requirements here.
Yes, please visit Open Protocol.
