The IL3 Eco-Drive motor room-less (MRL) gearless traction drive passenger lift is ideal for low or medium rise buildings and for moderate use. With an ever increasing demand to reduce energy use, our Eco-Drive passenger lifts use 35% less electricity than conventional traction lifts and can achieve two BREEAM credits. It’s a perfect cost-effective and energy efficient solution for your project.
Why it is beneficial to have an IL3 Eco-Drive lift on low travel buildings:
| Lift Speed |
Power Supply |
Acceleration Time |
Acceleration Distance |
Deceleration Time |
Deceleration to Stopping | Total Journey Time | Drive Power |
|
| Eco-Drive | 0.5 m/s | Single phase 240 V | 3.0s | 400mm | 4.0s | 1000mm | 24s | 1.8 kw |
| Eco-Drive | 0.5 m/s | Three phase 415 V | 3.0s | 400mm | 4.0s | 1000mm | 24s | 1.8 kw |
| Conventional MRL Traction | 1.0 m/s | Three phase 415 V | 4.0s | 750mm | 5.0s | 1800mm | 21s | 2.45 kw |
| Eco-Drive |
| Lift Speed |
| 0.5 m/s |
| Power Supply |
| Single phase 240 V |
| Acceleration Time |
| 3.0s |
| Acceleration Distance |
| 400mm |
| Deceleration Time |
| 4.0s |
| Deceleration to Stopping |
| 1000mm |
| Total Journey Time |
| 24s |
| Drive Power |
| 1.8 kw |
| Eco-Drive |
| Lift Speed |
| 0.5 m/s |
| Power Supply |
| Single phase 415 V |
| Acceleration Time |
| 3.0s |
| Acceleration Distance |
| 400mm |
| Deceleration Time |
| 4.0s |
| Deceleration to Stopping |
| 1000mm |
| Total Journey Time |
| 24s |
| Drive Power |
| 1.8 kw |
| Conventional |
| Lift Speed |
| 1.0 m/s |
| Power Supply |
| Three phase 415 V |
| Acceleration Time |
| 4.0s |
| Acceleration Distance |
| 750mm |
| Deceleration Time |
| 5.0s |
| Deceleration to Stopping |
| 1800mm |
| Total Journey Time |
| 21s |
| Drive Power |
| 2.45 kw |

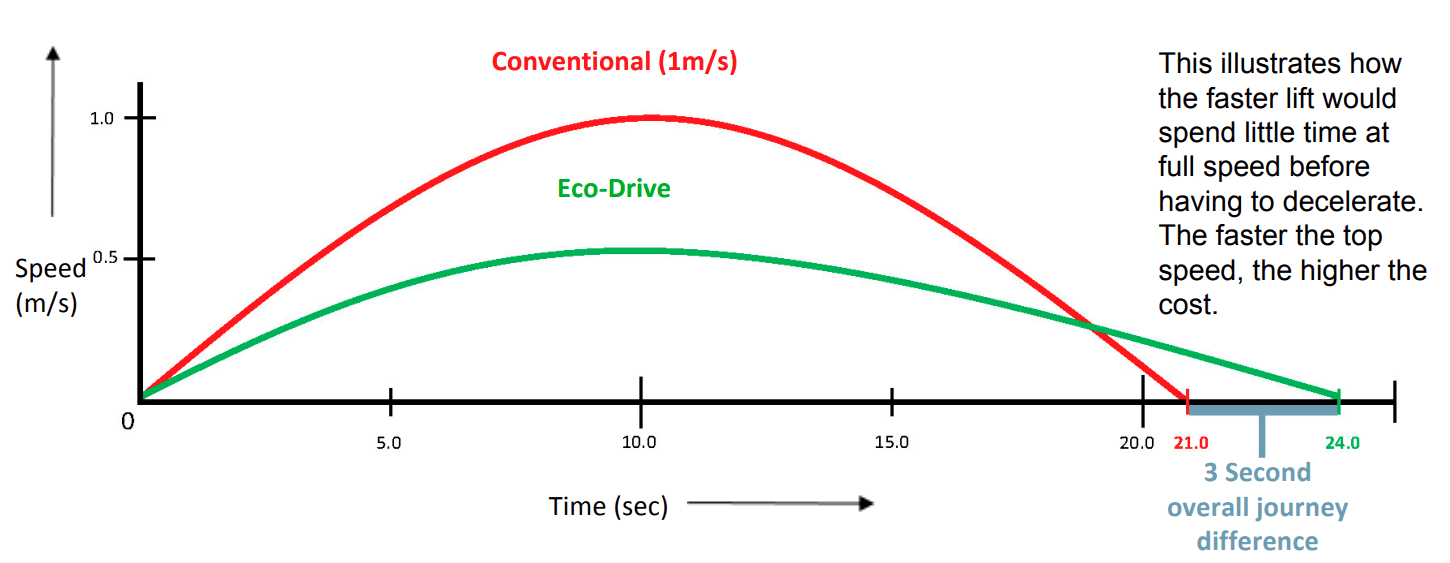

Illustration above based on an IL4 8 person (630kg) traction (MRL) over 4 floors
* 13-person (1000kg) only available in three phase, 415-volt
Our most popular models are detailed below, please contact us to discuss additional lift models and sizes not listed below.
| Lift Model Data Sheet No. Motor Room Less (MRL) Traction Drive | Capacity Passengers / Kg | Speed (m/s) | Clear Doors Openings | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) | Internal Car Width | Internal Car Depth | Internal Shaft Width to Fire Line Finish | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) | Headroom Above Finished Floor Level Including Lifting Beam |
| IL3E_F_630KG_C | 8 / 630 | 0.5 | 900 2 PSO | Type 2 M4 (2) Cat 2 | 1100 | 1400 | 1740 | 1900 (2040) | 1080 | 3650 |
| IL4_F_630KG_C | 8 / 630 | 1.0 | 900 2 PSO | Type 2 M4 (2) Cat 2 | 1100 | 1400 | 1740 | 1900 (2040) | 1080 | 3650 |
| IL3E_F_630KG | 8 / 630 | 0.5 | 900 2 PSO | Type 2 M4 (2) Cat 2 | 1100 | 1400 | 1830 | 1900 (2040) | 1080 | 3650 |
| IL4_F_630KG | 8 / 630 | 1.0 | 900 2 PSO | Type 2 M4 (2) Cat 2 | 1100 | 1400 | 1830 | 1900 (2040) | 1080 | 3650 |
| IL3E _F_1000KG | 13 / 1000 | 0.5 | 900 2 PSO | Type 3 M4 (2) Cat 2 | 1100 | 2100 | 1850 | 2580 (2740) | 1080 | 3650 |
| IL4_F_1000KG | 13 / 1000 | 1.0 | 900 2 PSO | Type 3 M4 (2) Cat 2 | 1100 | 2100 | 1850 | 2580 (2740) | 1080 | 3650 |
Our most popular models are detailed below, please contact us to discuss additional lift models and sizes not listed below.
| Lift Model Data Sheet No. Motor Room Less (MRL) Traction Drive | ||||||||||
| IL3E_F_630KG_C | Capacity Passengers / Kg 8 / 630 | Speed (m/s) 0.5 | Clear Doors Openings 900 2 PSO | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) Type 2 M4 (2) Cat 2 | Internal Car Width 1100 | Internal Car Depth 1400 | Internal Shaft Width to Fire Line Finish 1740 | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) 1900 | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) 1080 | Headroom Above Finished Floor Level Including Lifting Beam 3650 |
| IL4_F_630KG_C | Capacity Passengers / Kg 8 / 630 | Speed (m/s) 1.0 | Clear Doors Openings 900 2 PSO | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) Type 2 M4 (2) Cat 2 | Internal Car Width 1100 | Internal Car Depth 1400 | Internal Shaft Width to Fire Line Finish 1740 | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) 1900 | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) 1080 | Headroom Above Finished Floor Level Including Lifting Beam 3650 |
| IL3E_F_630KG | Capacity Passengers / Kg 8 / 630 | Speed (m/s) 0.5 | Clear Doors Openings 900 2 PSO | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) Type 2 M4 (2) Cat 2 | Internal Car Width 1100 | Internal Car Depth 1400 | Internal Shaft Width to Fire Line Finish 1830 | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) 1900 | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) 1080 | Headroom Above Finished Floor Level Including Lifting Beam 3650 |
| IL4_F_630KG | Capacity Passengers / Kg 8 / 630 | Speed (m/s) 1.0 | Clear Doors Openings 900 2 PSO | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) Type 2 M4 (2) Cat 2 | Internal Car Width 1100 | Internal Car Depth 1400 | Internal Shaft Width to Fire Line Finish 1830 | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) 1900 | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) 1080 | Headroom Above Finished Floor Level Including Lifting Beam 3650 |
| IL3E _F_1000KG | Capacity Passengers / Kg 13 / 1000 | Speed (m/s) 0.5 | Clear Doors Openings 900 2 PSO | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) Type 3 M4 (2) Cat 2 | Internal Car Width 1100 | Internal Car Depth 2100 | Internal Shaft Width to Fire Line Finish 1900 | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) 2650 | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) 1080 | Headroom Above Finished Floor Level Including Lifting Beam 3650 |
| IL4_F_1000KG | Capacity Passengers / Kg 13 / 1000 | Speed (m/s) 1.0 | Clear Doors Openings 900 2 PSO | Accessibility – Compliant with BS EN 81-70 Harmonised Standards & Building Regulations (Part M) Type 3 M4 (2) Cat 2 | Internal Car Width 1100 | Internal Car Depth 2100 | Internal Shaft Width to Fire Line Finish 1900 | Internal Shaft Depth to Fire Line Finish Landing entrances without threshold rebates Single Entrance (Through Car) 2650 | Pit Depth Below Finished Floor Level † (BS EN 81-20/50 compliant) 1080 | Headroom Above Finished Floor Level Including Lifting Beam 3650 |
Yes, please visit Breeam Compliance for further information.
Yes, please visit Hybrid Platform Lifts.
Yes, please visit our Accessibility Guide.
Yes, please visit Evacuation Control Lifts.
Yes, please visit Firefighting Lifts.
Yes, please visit Vandal Resistant Lifts.
We mostly provide 8-Person and 13-Person lifts but can accommodate from 4-P to 33-P, see more information about our lift shaft size requirements here.
Yes, please visit Open Protocol.
